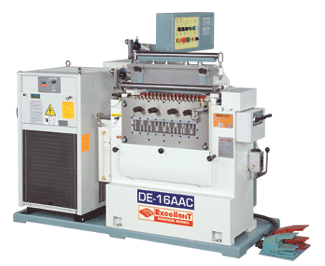

  Automatic Dovetail Tenoner




DE-8AAC / DE-16AAC
Gearbox Oil Cooler
Eliminates High Temperatures in the Gearbox.
Ensures High Machining Accuracy. Extends Machine Service Life.




SPECIFICATION:
MODEL

DE-8AAC
DE-16AAC
Motor
2 HP x 1 P.C.
2 HP x 2 P.C.
Capacity (thick)x(wide)
3/8"-1 x 8 1/4"
3/8"-1 x 16 1/4"

Number of tools
8
16
Spindle speed
6500 RPM
6500 RPM
Machine dimensions
63" x 54" x 62"
70" x 54" x 62"
Packing dimensions
65" x 56" x 64"
72" x 56" x 64"

Net weight
630 kgs
740 kgs

Gross weight
730 kgs
860 kgs



All specifications, dimensions and design characteristics shown in this catalogue are subject to change without notice.
