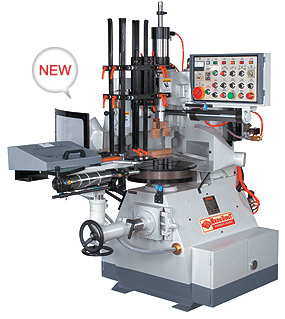

DT-1128A
|
 |
Shaping Capacity
DT-1128A: 1" to 6" (changable) |
| |
|
|
| |
|
 |
- Convenient operation by PLC controller.
- Auto feed system - saves manpower greatly and reduces production time
|
|
|
| |
SPECIFICATION: |
|
MODEL |
DT-1128A |
|
Range of cutter diameter |
|
| Table diameter |
18" |
| Table speed |
1.5~4.0 RPM (4 speeds) |
| Spindle diameter |
30 m/m |
| Spindle speed |
9000 RPM |
|
Cutter size |
100 mm |
| Spindle height |
4" |
| Follower roller diameter |
100 mm x 1 |
| Table drive motor |
1 HP |
| Spindle motor |
5 HP x 1 |
| Working speed |
5~6 times/minutes |
| Net weight |
1000 kgs |
| Gross weight |
1100 kgs |
| Packing size |
230" x 160" x 210 cm |
|
