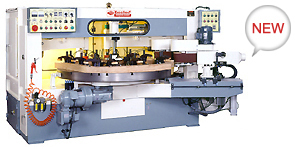

  Automatic Copy Shaper Edge Sander Combined in a Single Unit.

  A Super Heavy Duty Series of Models.



DT-1260SS / DT-1280SS
Maximum diameter of cut :
  DT-1260SS: dia.60"
  DT-1280SS: dia.80"
Range of sanding diameter:
  DT-1260SS: dia.24"-60"
  DT-1280SS: dia.36"-80"
Single table.
Double cutterheads.
With Edge Sanding Attachment.

DT-12100SS / DT-12120SS
Maximum diameter of cut :
  DT-12100SS: dia.100"
  DT-12120SS: dia.120"
Range of sanding diameter:
  DT-12100SS: dia.48"-100"
  DT-12120SS: dia.60"-120"
Single table.
Double cutterheads.
With Edge Sanding Attachment.
SPECIFICATION:
MODEL
DT-1260SS

DT-1280SS

DT-12100SS

DT-12120SS
Range of cutting diameter
16" - 60"
20" - 80"
24" - 100"
28" - 120"
Maximum rectangular
cutting (2:1)
53.4" x 26.7"
71.4" x 35.7"
89.2." x 44.6"
107.4" x 53.7"

Table diameter
46"
62"
72"
72"
Table rotation speed
(Infinitely variable)
0.5 - 3RPM
0.5 - 3RPM
0.5 - 3RP
0.5 - 3RPM
Spindle speed
9000RPM
9000RPM
9000RPM
9000RPM
Spindle diameter
(interchangeable)
1",30MM 11/4"
(One dia funished)
1",30mm,11/4"
(One dia funished)
1",30mm,11/4"
(One dia funished)
1",30mm,11/4"
(One dia funished)

Cutter size
100mm
100mm
100mm
100mm

Follower roller diameter
100mm
100mm
100mm
100mm

Table drive motor
2HP x 1
2HP x 1
3HP x 1
3HP x 1
Spindle drive motor
10HP x 2
10HP x 2
10HP x 2
15HP x 2
Net weight
2600kgs
3350kgs
4350kgs
5500kgs
Gross weight
3150kgs
4200kgs
5350kgs
6750kgs
Packing size
100" x 83" x 77"
131" x 89" x 81"
148" x 90" x 82"
168" x 91" x 82"



All specifications, dimensions and design characteristics shown in this catalogue are subject to change without notice.
